美标法兰式衬氟刀形闸阀
产品型号：PZ41H/F/X/Y-1.0/1.6
产品口径：DN50-600
产品压力：0.6-1.6Mpa
产品材质：碳钢、铸钢、不锈钢
美标法兰式衬氟刀形闸阀详细介绍
主要性能规范
Chief Proprty And Specifieation
|
公称压力（MPa） |
0.6、1.0、1.6 (150LB) |
| 壳体试验（MPa） Shell Test |
1.5、2.4 |
| 密封试验（MPa） Seal Teat |
1.1、1.8 |
| 工作温度 Working Temperation |
≤100℃ |
| 适用介质 Applicable Medium |
纸浆、污水、煤渣、灰渣 Mortar Mixture,Dregs with Water Proportion |
主要零件材料
MATERIALS OF MAIN PARTS
| 零件名称Part name | 材 质 Materials | |
| PZ41F-16C | PZ41F-16P | |
| 阀体Body Valve | WCB | CF8 |
| 滑板Slide plate | 2Cr13 | CF8 |
| 阀杆Valve stem | 2Cr13 | CF8 |
| 密封圈Seal ring | PTFE | PRFE |

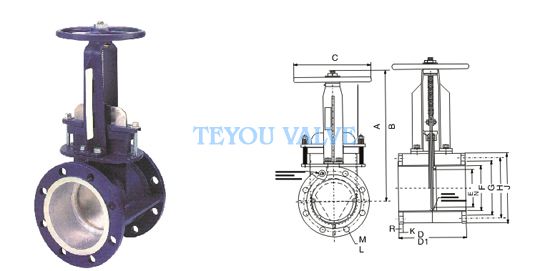

主要外形及连接尺寸
Main External And Connecting Dimensions(mm)
| TABULATION TABLE | ||||||||||||
| D-94-122 | ||||||||||||
| DIM. | 50MM | 80MM | 100MM | 150MM | 200MM | 250MM | 300MM | 350MM | 400MM | 450MM | 500MM | 600MM |
| A | 383 | 460 | 527 | 678 | 873 | 1049 | 1192 | 1408 | 1588 | 1756 | 2081 | 383 |
| B | 325 | 378 | 419 | 513 | 657 | 783 | 872 | 1033 | 1162 | 1280 | 1503 | 325 |
| C | 203 | 203 |
203 | 254 | 305 | 406 | 406 | 508 | 508 | 508 | 508 | 203 |
| D | 178 | 203 | 229 | 267 | 292 | 330 | 356 | 406 | 432 | 457 | 508 | 178 |
| D1 | 140 | 152 | 159 | 171 | 178 | 187 | 203 | 229 | 254 | 267 | 279 | 140 |
| E | 38 | 64 | 89 | 152 | 203 | 254 | 144 | 362 | 413 | 457 | 559 | 38 |
| F | 64 | 89 | 114 | 178 | 229 | 279 | 343 | 397 | 448 | 498 | 600 | 64 |
| G | 92 | 127 | 157 | 216 | 270 | 324 | 381 | 470 | 533 | 584 | 692 | 92 |
| H | 121 | 36 | 191 | 241 | 298 | 362 | 432 | 540 | 578 | 635 | 749 | 121 |
| J | 36 | 191 | 229 | 279 | 343 | 406 | 482 | 570 | 635 | 799 | 813 | 36 |
| K | 14 | 14 | 14 |
17 | 21 | 21 | 22 | 25 | 25 | 25 | 25 | 14 |
| L | 4 | 4 | 8 | 8 | 8 | 12 | 12 | 16 | 16 | 20 | 20 | 4 |
| M | 19 | 19 | 19 | 22 | 22 | 25 | 25 | 29 | 32 | 32 | 35 | 19 |
| N | 38 | 38 | 89 | 152 | 203 | 254 | 308 | 362 | 413 | 457 | 559 | 38 |
| R | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 2 |
